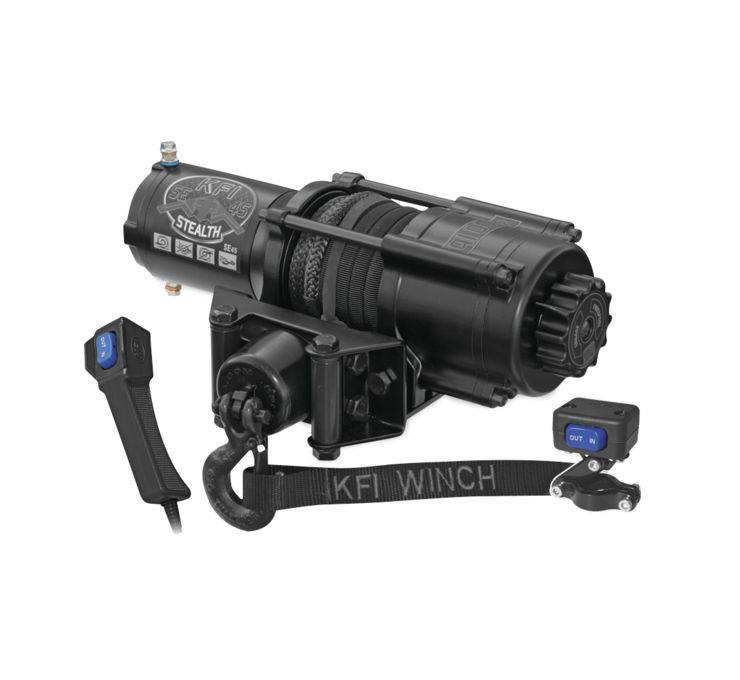

This 4,500 lbs. UTV Stealth Series winch features synthetic cable, cable hook stopper, a dynamic, mechanical and drum braking system, water-resistant seals to keep the elements out, a standard or wide 4-hole mounting design and a heavy-duty all metal turn clutch. Rated line pull: 4,500 lbs.
Motor: 12-Volt DC, 1.7 hp permanent magnet
Gear ratio: 166:1
Standard synthetic cable: 15/64? D x 38? L
Wide cynthetic cable: 15/64? D x 50? L
Standard winch dimensions: 14.6? L x 4.55? D x 4.82? H
Wide winch dimensions: 16.36? L x 4.55? D x 4.82? H
Standard mounting bolt pattern: 3.00? x 4.875? four hole
Wide mounting bolt pattern: 3.00? x 6.6? four hole
Standard winch weight: 32 lbs.
Wide winch weight: 34.4 lbs.
Cable hook stopper P/N 573914 included
